SPIDER GLASS FACADE SYSTEM: OPTIMAL SOLUTION FOR MODERN ARCHITECTURE

Spider glass facade system is widely used in modern architectural works. To better understand the structure, advantages, applications, and installation process of this type of glass facade, please read the article below!

1.What is the Spider glass facade system?

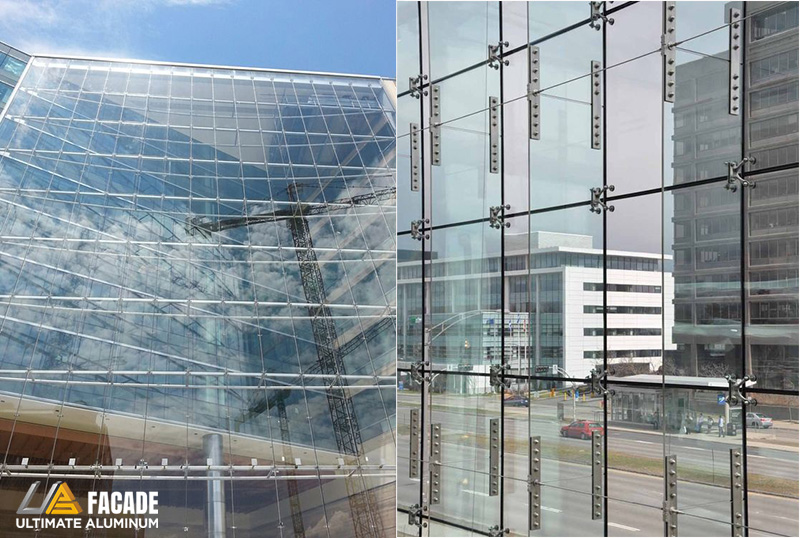

Spider façade system, also known as spider bracing facade system, is a modern architectural solution widely used in high-rise buildings, commercial buildings and villas. This system is made up of steel or aluminum support frames shaped like spiders, called Spider brackets, combined with tempered glass panels or laminated safety glass.

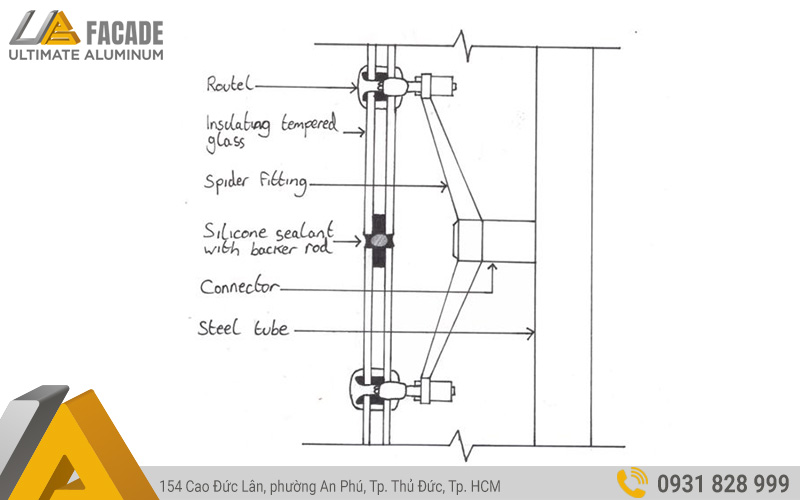

1.1.Structure:

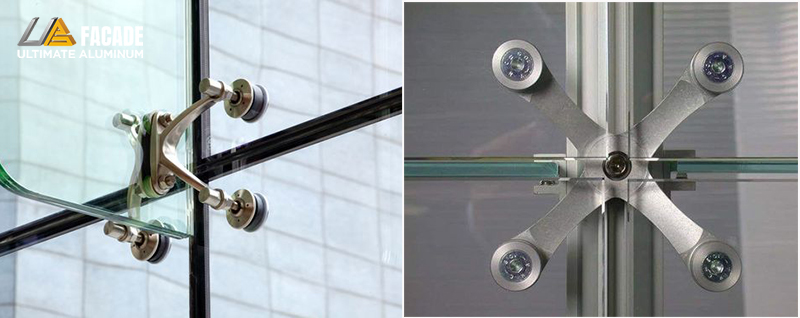

• Spider brackets: Specially designed with protruding arms, creating a solid fulcrum for the glass panel.
• Glass panels: Selected based on aesthetics, durability and energy efficiency requirements.
• Support structure: Consists of braces, beams and columns, designed to withstand and distribute loads throughout the system.

1.2.Principles of operation:

The Spider façade system operates on the principle of connection between supporting frames and glass panels through bolts or screws. The force acting on the system is transmitted through the Spider brackets, then evenly distributed to the support structures.

2. Classification of Spider facade systems

Spider façade systems can be classified based on two main criteria: number of Spider legs and connection method.

2.1.Classification according to the number of Spider legs:

• 1-legged Spider system: Used for small glass surfaces and light loads.
• 2-legged Spider system: Popular in medium and large projects, balancing load-bearing capacity and aesthetics.
• 4-legged Spider system: Can withstand heavy loads, often used for curved or specially shaped glass facades.
• 6-legged Spider system: Provides extremely large bearing capacity, often used in high-rise buildings or with special technical requirements.

2.2.Classification according to connection method:

• Connecting Spider to beams (iron beams, concrete beams): Popular method, ensuring stability and safety for the facade system.
• Using anti-glazing: Creates unique architectural accents, often used when wanting to minimize the appearance of structure.
• Connecting Spider with cables: Creates impressive visual effects, often used for projects with modern and unique designs.

3. Outstanding advantages of Spider facade system glass walls

3.1. Ventilation & open space:

The spider façade system uses transparent tempered glass combined with a minimalist spider support system, creating an almost frameless façade. This brings a feeling of open space, a seamless connection between the interior and exterior spaces of the building.

3.2.Safety & load reduction:

Using high-strength tempered glass along with a gentle spider system helps significantly reduce the load on the project. In addition, when tempered glass breaks, it will form small pieces with no sharp edges, ensuring safety for users.

3.3.High aesthetics & design flexibility:

• Spider facade system with a variety of installation accessories, easily combined with many different structures and materials, creating high aesthetics for the project.
• This system allows for flexible shaping, from straight, kinked, wavy lines to curved surfaces, meeting all unique design ideas. Especially suitable for modern projects such as office buildings, shopping centers, hotels...

3.4.Energy saving & environmental protection:

Spider facade systems usually use Low-E glass or insulated box glass to help control the temperature inside the building, minimizing energy use for the air conditioning system. In addition, using transparent glass also helps make the most of natural light and minimizes electricity usage.

4.Applications of Spider glass facades

The applications of Spider glass facades are extremely diverse, from high-rise buildings to unique architectural works.

• Commercial projects: Office buildings, shopping centers, supermarkets, showrooms, hotels, resorts.
• Civil works: Villas, luxury houses, high-rise apartments.
• Public works: Airports, stations, ports, hospitals, schools, stadiums, conference centers, museums, libraries.
• Landscape architecture: Entertainment areas, parks, greenhouses, botanical gardens.

5. Types of glass used for Spider facade systems

Below are some common types of glass used in this spider facade system:

5.1.Tempered glass:

High hardness, good bearing capacity, safe when broken (forms small particles without sharp edges).
Applied for projects that require high safety and can withstand strong impacts such as glass doors, partitions, and railings.

5.2.Laminated safety glass:

• Advantages: Extremely durable, strong impact resistance, anti-break-in, won't fall out when broken.
• Application: High-rise buildings, glass roofs, large glass walls, areas requiring high security.

5.3.Low-E Glass:

• Advantages: Reflects solar heat, reduces heat absorption, saves cooling energy.
• Application: Office buildings, hotels, houses facing west, hot climate areas.

5.4.Insulating glass:

• Advantages: Good heat and sound insulation, creates a quiet space, maintains a stable temperature.
• Applications: Meeting rooms, recording studios, homes requiring high sound insulation, noisy areas.

5.5.Decorative glass:

• Advantages: Various colors, patterns, textures, creating unique aesthetic highlights.
• Applications: Decorative facades, interior partitions, wall cladding, glass ceilings.

Choosing the right type of glass for the Spider façade system depends on the aesthetic, durability, energy efficiency and safety requirements of the building. Each type of glass has its own advantages and disadvantages, which should be carefully considered before deciding.

6. Construction process of Spider system facade glass walls

At UA Facade, we are committed to providing a professional spider system facade glass wall construction process, ensuring optimal quality and progress. Below are the detailed steps:

6.1.Phase 1: Consulting & survey

• Receiving requests: Receiving information and requests from customers about facade glass wall projects.
• Actual survey: Measure the current status of the project, evaluate actual construction conditions.
• Solution consulting: Proposing design options and material selection in accordance with the customer's technical, aesthetic and budget requirements.

6.2.Phase 2: Design & quotation

• Design drawings: Prepare detailed drawings of the glass wall system, including exact specifications.
• Estimates & quotes: Calculate the amount of materials and labor and provide detailed quotes to customers.
• Agreement on contract: Sign the construction contract after both parties agree on the plan and cost.

6.3.Phase 3: Processing & construction

• Processing and manufacturing: Processing glass, steel, and accessories according to approved technical drawings.
• Transporting materials: Transporting materials and equipment to the construction site safely and on schedule.
• Installing the spider system: Install the spider frame system, glass and associated accessories.
• Test & Calibrate: Check quality, safety and calibrate the entire system.

6.4.Phase 4: Acceptance & handover

• Acceptance of the project: The customer and UA Facade conduct acceptance and check the quality of the project.
• Handover & instructions: Handover of completed works, instructions for use and maintenance of the system.
• Warranty & maintenance: Perform warranty and periodic maintenance services as committed in the contract.

7.Note when choosing Spider facade system

The spider facade system brings modern beauty and many outstanding advantages. However, to ensure optimal aesthetic and functional results, the following factors should be kept in mind when choosing:

7.1. Architectural compatibility:

• The spider façade system can be used for many architectural styles, from modern and minimalist to classic and neoclassical.
• Choose a system whose size, color, style suits the overall project.

7.2.Durability & safety:

• Pay attention to construction load, weather conditions, surrounding environment (wind, storm, earthquake...)
• Priority is given to the system using high quality materials, meeting safety standards, and having good bearing capacity.

7.3.Energy efficiency:

• Combine Low-E glass and insulated box glass to enhance heat insulation and save energy.
• Select a system appropriate to the climatic conditions and energy needs of the building.

7.4.Project budget:

• Clearly define the project budget for the facade system.
• Compare and choose a system that suits your financial capabilities, considering quality and cost.

7.5.Reputable suppliers:

• Choose a reputable supplier and contractor with experience in designing and constructing spider facade systems.
• Check the capacity, experience, and profile of the construction unit.
• Ensure clear and transparent warranty and maintenance policies.

8. Price quote for Spider - UA Facade glass wall

UA Facade - Reputable general contractor for aluminum and glass construction, specializing in large-scale Spider façade glass projects, ensuring:

- Standard technical quality.

- Strict accreditation process.

- Optimal construction solution for:

• Budget: Competitive, suitable for needs.
• Design: Ensure aesthetics and creativity.
• Structure: Safe and durable.

Contact UA Facade now for a free consultation and receive a detailed Spider glass wall quote!
